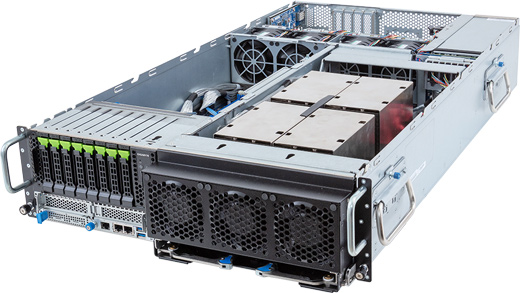

שרת – Gigabyte G363-ZR0 3U
כולל מע"מ
נא להתקשר לקבלת מחיר
| מעבד |
Amd EPYC™ 9654 X 2 |
|---|---|
| זיכרון |
1024GB (64GB x 16) DDR5 |
| אחסון |
Samsung U.2 1.92TB |
| כרטיס מסך |
Nvidia H100 Tensor Core GPU 80GB x 4 |
| כרטיס רשת |
NVIDIA MCX556A-ECUT ConnectX-5 VPI |
| אחריות |
Onsite Server Premium service 3Y NBD Israel Only |
G363-ZR0 HGX | 3U | EPYC 9654 X 2 | 1024GB | H100 SXM5 X 4 | 1.9TB U.2 | ConnectX®-5 InfiniBand/Ethernet 100Gb | 3 YOS
Powering the Next Generation of Server Architecture and Energy Efficiency
The path to AMD’s 5nm ‘Zen 4’ architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.
4th Gen AMD EPYC Processors for SP5 Socket
5nmarchitecture
Compute density increased with more transistors packed in less space
128CPU cores
Dedicated cores and targeted workloads for Zen 4c & Zen 4 cores
Large L3cache
Select CPUs have 3x or more L3 cache for technical computing
SP5compatibility
All 9004 series processors are supported on one platform
12channels
Memory capacity can achieve 6TB per socket
DDR5memory
Increased memory throughput and higher DDR5 capacity per DIMM
PCIe 5.0lanes
Increased IO throughput achieving 128GB/s bandwidth in PCIe x16 lanes
CXL 1.1+support
Disaggregated compute architecture possible via Compute Express Link

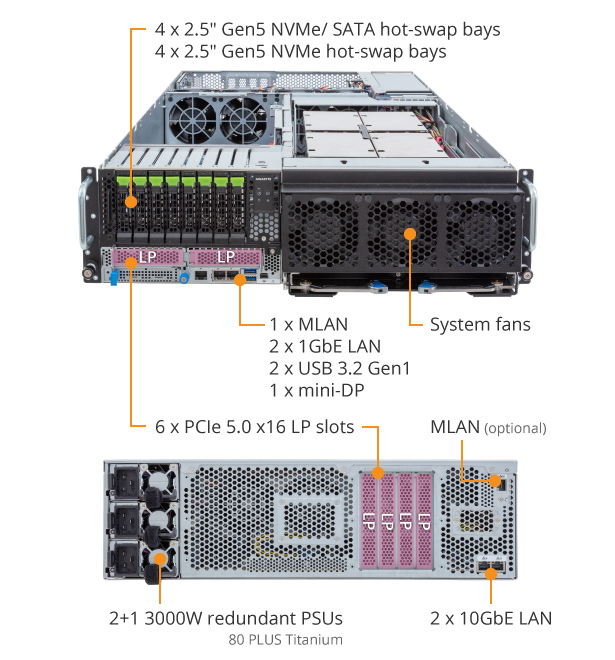

G363-ZR0-AAX1 Product Overview

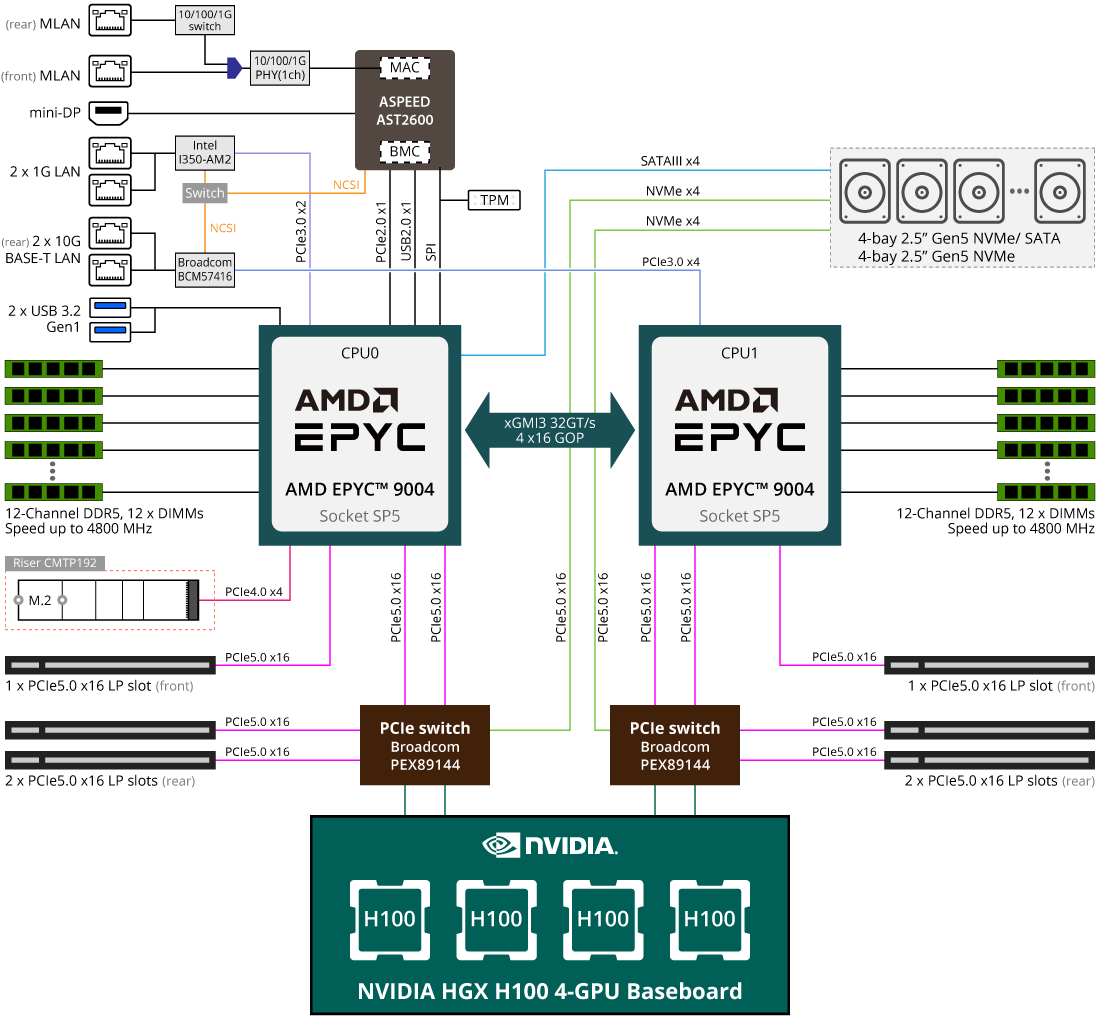

G363-ZR0-AAX1 Block Diagram
High Performance
Supports NVIDIA HGX™ H100 4-GPU
The NVIDIA H100 Tensor Core GPU enables an order-of-magnitude leap for large-scale AI and HPC with unprecedented performance, scalability and security for every data center. With NVIDIA AI Enterprise for streamlined AI development and deployment, NVIDIA NVLINK Switch System direct communication between up to 256 GPUs, H100 accelerates everything from exascale scale workloads with a dedicated Transformer Engine for trillion parameter language models, down to right-sized Multi-Instance GPU (MIG) partitions.
Power Efficiency
Automatic Fan Speed Control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
High Availability
Smart Ride Through (SmaRT)
To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.
Smart Crises Management and Protection (SCMP)
SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.
Dual ROM Architecture
If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user’s choice of firmware version.
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
User Friendly
Tool-less Drive Bays Design
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
Certified Ready with Software Partners
Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.
Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.
GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:
- Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.
